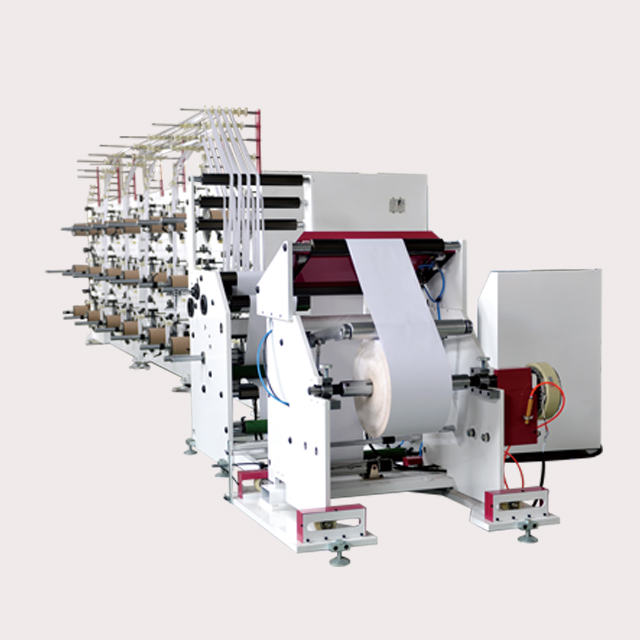

HH300I 24(48) Shafts Spool winding machine (A type)

Availability:
Quantity:
Applications:
Suitable for slitting, spooling and rewinding PET, EVA foam, form tape, silicone strip, woven fabric, carry handle tape, paper, electrolytic capacitor paper, cotton paper, aluminum foil, adhesive tape, etc.
Example of application: Auto sealing upper & lower cover tape of electronic products, auto sealing food packing industry & wrapping thin coaxial cables.

Features:
1. EPC system
2. Shear blade/ industry knife/ air blade/ rotary blade slitting
3. Center surface type rewinding
4. Moveable rewind shafts or fixed spool winder shafts (depends on materials)
5. PLC calculating for auto tension control

Technical parameters:
Machine width: 600MM/ 1000MM
Max. Unwind diameter: 1000MM
Min. Slitting width: 1MM-5MM
Max. Rewind diameter: 350MM
Unwind paper core I.D: 3” / 6”
Rewind paper core I.D: 3”-6”
Rewind product quantity: 3Rolls - 66 Rolls(Based on your needs)
Max. Width of finished product: 50MM-450MM
Machine speed: 0-80M/Min
