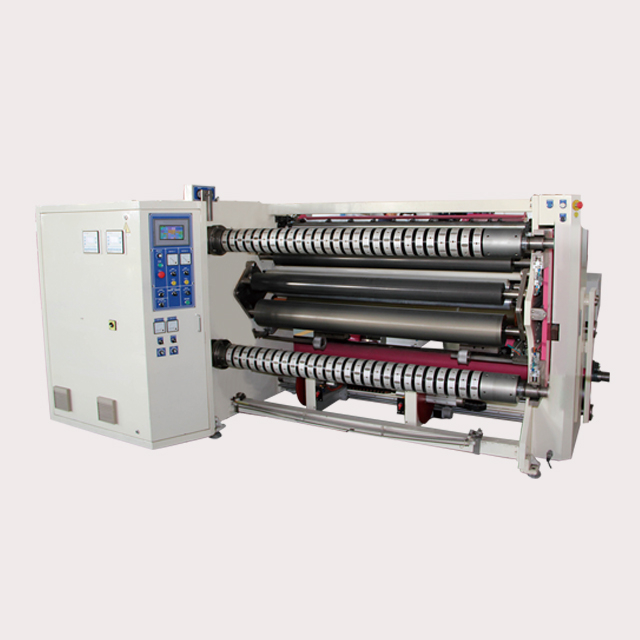

HH1300G High Speed Vertical Slitting Machine

Availability:
Quantity:

Function:
Suitable for slitting different kinds of optical film , tape laminated film, etc.

Main motor device: AC motor with converter works as material transfer.

They make a steady and rapid progression by acceleration and deceleration.

Main motor: Three motors,i.e.main motor and two rewind magnetic powder form constant control.

The main motor is for we feeding and rewind magnetic powder are for tension control so that the finished products have stable tension and beautiful outlook.

Rewind unit: Rewind shaft uses press roller to eliminate air to make finished products tense and nice outlook.
Rewind unit: Rewind shaft uses press roller to eliminate air to make finished products tense and nice lookout.

Finished product rewind: With bar type air shaft or differential shaft,suitable for more materials.

The shaft exchange is by special design and easy to change.

Electricity unit: LCD touch panel is used for setting tension,length,etc.

The control system adopts Siemens PLC to control movements with detecting function so error can be found out easily.

Unwind unit: Separate unwind base for bigger unwind diameter.


Optional:
Auto up-lifting device: Hydraulic type jumbo roll loading for saving labor force and working time.
Noise hood: For reducing production noise when machine is working.
Receiving device: For connecting materials at front and back sides to improve efficiency.

MODEL
HH-1000G
HH-1300G
HH-1600G
Max. Unwind width
 1000MM
 1300MM
 1600MM
Unwind diameter
 800MM
 800MM
 800MM
Rewind width
 25-1000MM
 25-1300MM
 25-1600MM
Rewind diameter
 450MM (Max)
Inside diameter of paper core
 3''
Machine speed
 0-120 M/Min
Power
220V/380V/440V  3Phase  50/60 HZ
