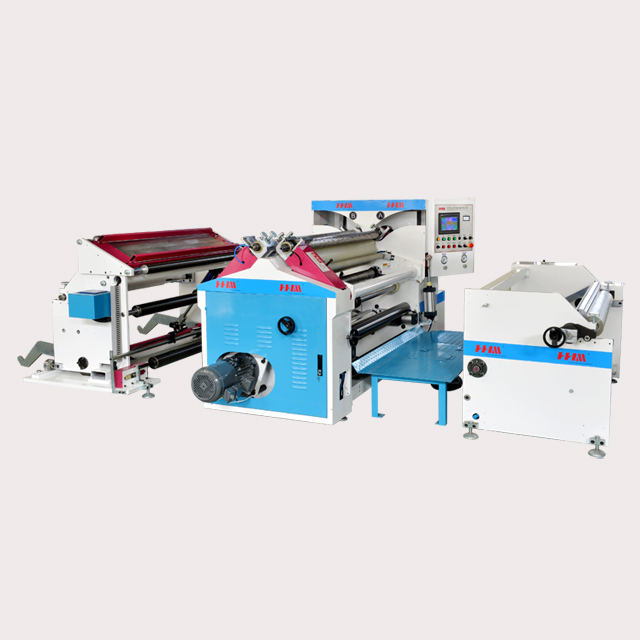

HH1300EA Center Surface Srtipping Slitting Rewinding Machine

Quantity:
Function:
Applicabel for double layer materials such as PET protective film, stripping slitting and rewinding to single-layer, matching bubble functions, design for coating manufacturers specially.

Parameters:
Machine width:1M, 1.3M, 1.6M
Max. Rewind diameter: 450MM
Rewind I.D.: 3''-6''
Max. Unwind diameter: 800MM
Min. Slitting width: 10MM
Max. Running speed: 120M/Min
Function:  Applicabel for double layer materials such as PET protective film, stripping slitting and rewinding to single-layer, matching bubble functions, design for coating manufacturers specially.

Features:
Main motor: Three rewinding motor with main motor do four- motor linkage control. The main motor is for partition of feeding and rewinding tension. The finished products have stable tension and beautiful outlook.
Rewind device: Rewind shaft arm adopts pneumatic type to control balance, so that contact pressure is adjustable automatically. This machine has optional discontinuous guide roll rewind for slitting many order materials.
Electric device: LCD touch panel is used for setting tension, length, etc. The control system adopts Siemens PLC to control movements with self-detection function, so error can be found out easily.
Unwind device: Separate unwind base for bigger unwind diameter.

Optional:
Auto up-lifting device: hydraulic type jumbo roll loading for saving labor force and working time.
Noise hood: For reducing production noise when machine is working.
Receiving device: For connecting materials at front and back sides to improve efficiency.
