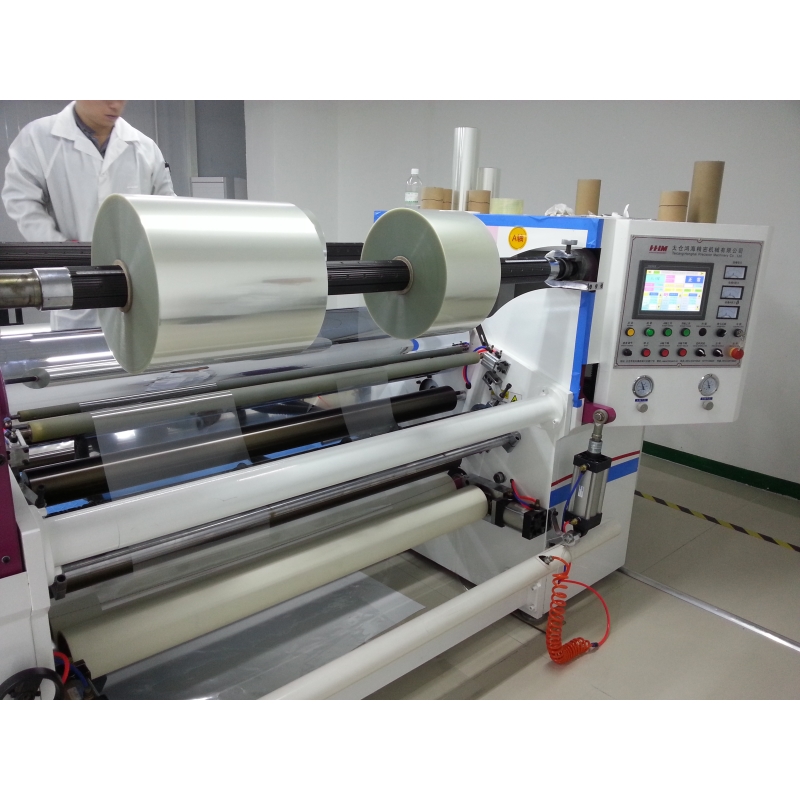

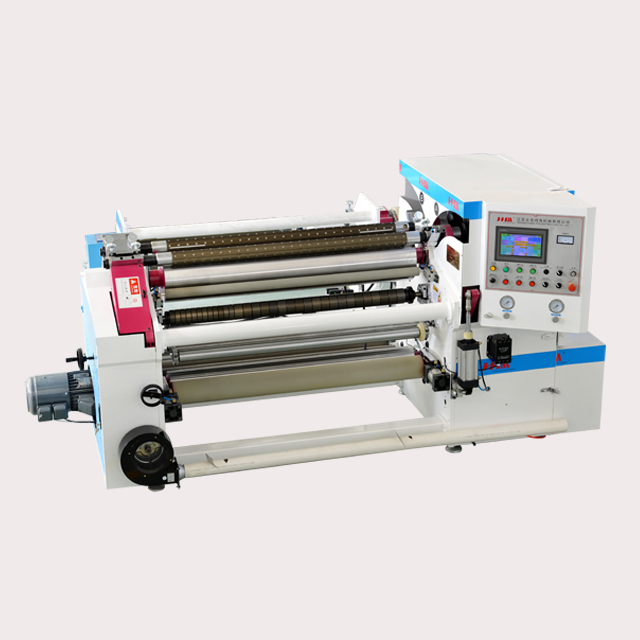

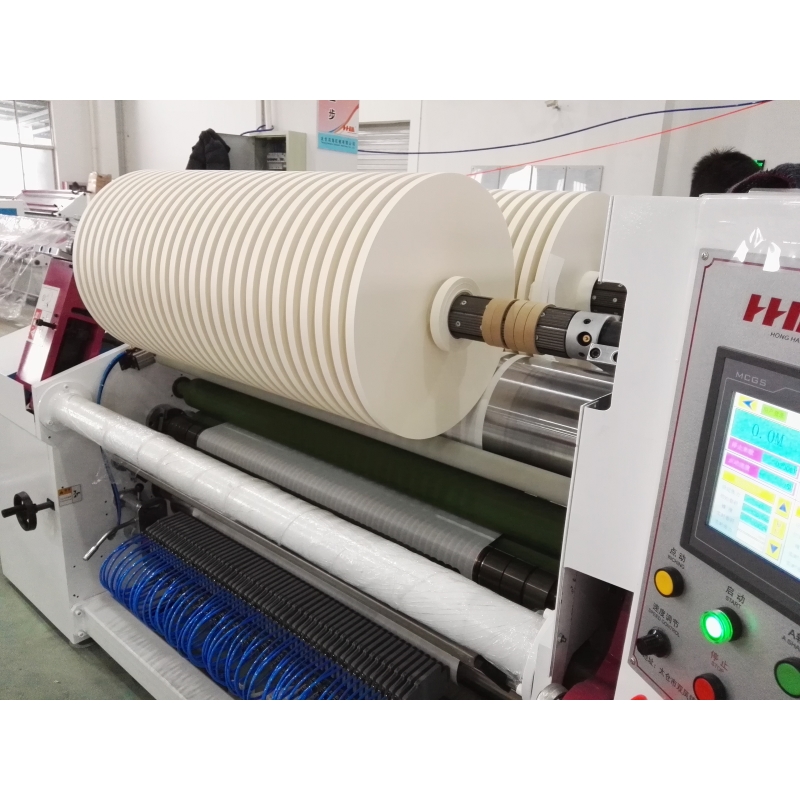

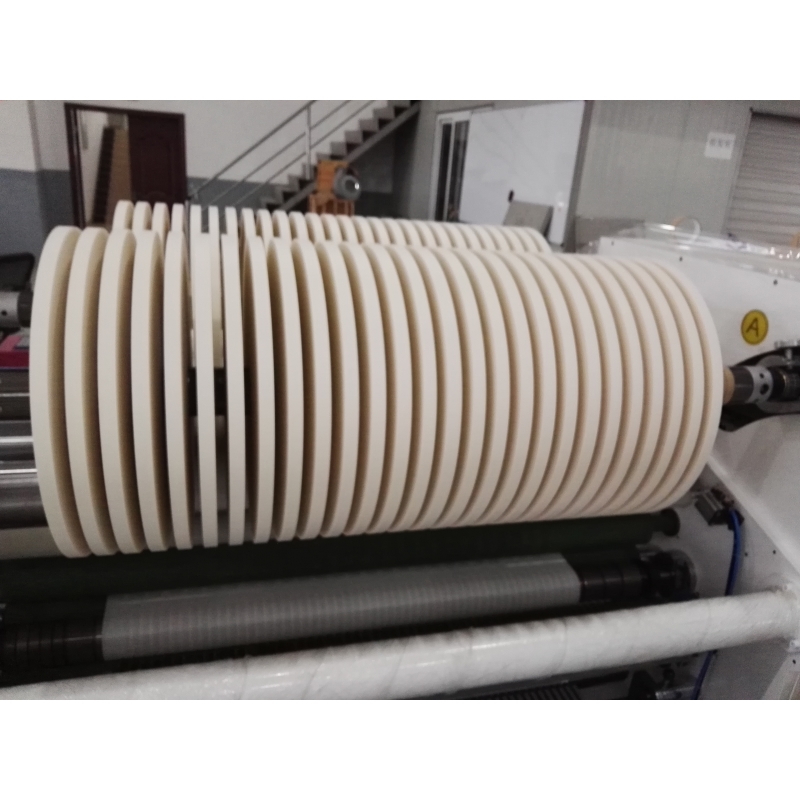

HH1300E Center Surface Slitting Machine

Availability:
Quantity:
  • HH1300E
  • HHM

Function:

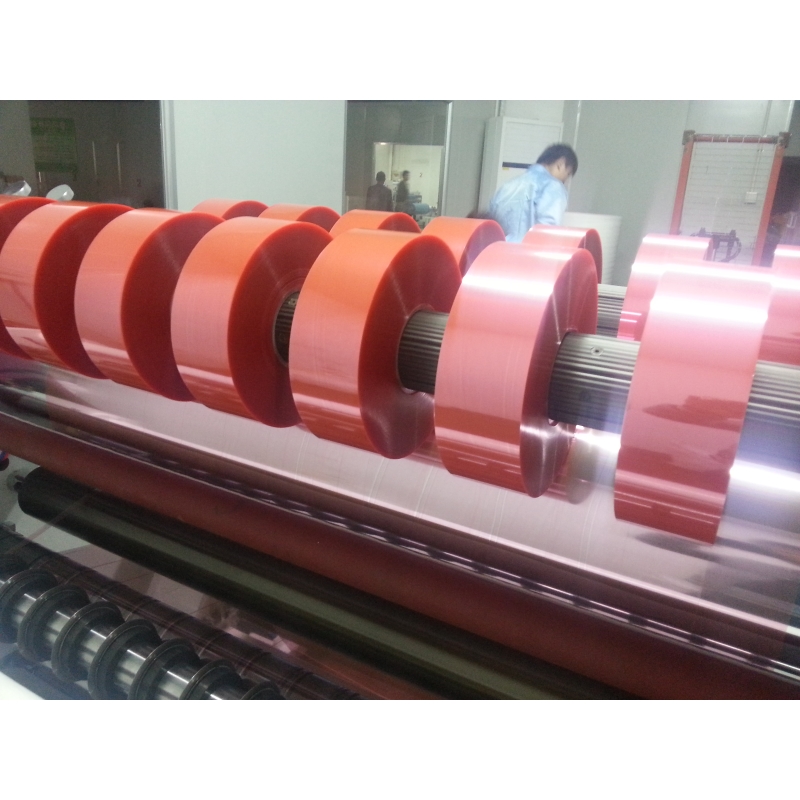

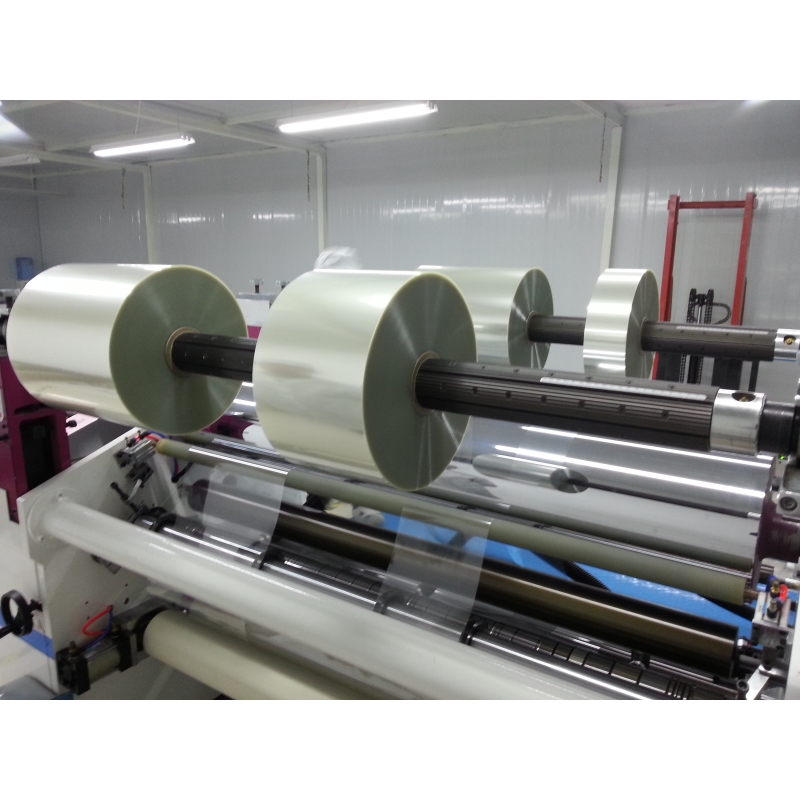

Applicable to release film, protective film, paper, PET,  PC, PS, PE, fabric and etc.

Parameters:
1. Machine width:1M, 1.3M, 1.6M
2. Max. Rewind diameter: 600MM
3. Rewind I.D.: 3inch - 6inch
4. Max. Unwind diameter: 1000MM
5. Min. Slitting width: 10MM
6. Max. Running speed: 160M/Min


Features:
The machine is good at slitting many different kinds of materials.

Main motor: Two rewinding motor with main motor do three- motor linkage control.

Rewind device: Rewind shaft arm adopts pneumatic type to control balance,
so that contact pressure is adjustable automatically.

This machine has optional discontinuous guide roll rewind for slitting many order materials.
Electric device: LCD touch panel is used for setting tension, length, etc.

The control system adopts Siemens PLC to control movements with self-detection function,
so error can be found out easily.
Unwind device: Separate unwind base for bigger unwind diameter.

Optional:
The rewinding air shaft can be changed with slip shaft, if the thcikness of material is not average.
Auto up-lifting device: hydraulic type jumbo roll loading for saving labor force and working time.
Noise hood: For reducing production noise when machine is working.
Receiving device: For connecting materials at front and back sides to improve efficiency.
