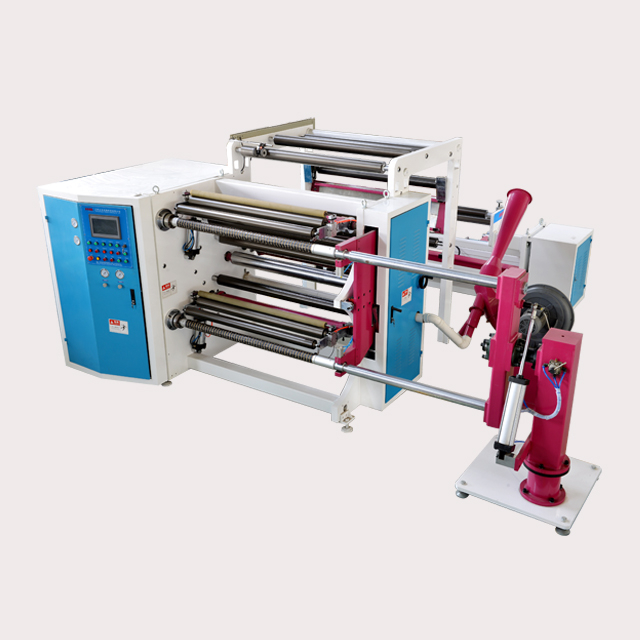

HH-1450A Double-shaft High Speed Slitting Machine

Quantity:
 Application:
Suitable for Self adhesive label paper,adhesive film & paper.

Technical parameters:
Machine width: 1400MM
Max. unwind diameter: 1200MM
Min. slitting width: 30MM
Max. rewind diameter: 500MM
I.D. of paper core:3''(76.2MM)
Machinery speed: 0-300M/Min
Voltage: 380V 50HZ 3PHASE

Feature:
1. The motor unit adopts three-motor connective control, and the rewind system can make tension and differential shaft line speed control.
2. The unwind unit is no-shaft separated type, equipped with auto tension control and EPC system.
3. The rewind shaft tension by differential ring control, and auto adjust difference of each roll when the material thickness is not average.
4. Finished product is taken out with connect type frame to help unloading to save time and improve efficiency.
5. With upper and lower circular blade driving device.

Optional:
1. Shaftless unwind base: up lifting type with chucks to save loading time and improve efficiency.
2. Connect type paper receiving platform: For more smooth edge and reducing material waste.
3. Slitting blade can use industrial razor blade or air score knife.
